Bug report, module tirdad fails to load

I updated whonix today. They wanted to update the kernel, and now I get an error.
Host- ZorinOS 18.1
Virtualbox version- 7.0.16-dfsg-2ubuntu1.3

Here are relevant error messages from systemcheck.

~$ systemcheck
[WARNING] [systemcheck] System ready check (system) Result: Failed.

Debugging information:
Command:
'sudo systemctl --wait is-system-running'
(same as 'leaprun system-ready-check')
result: 'degraded'
[WARNING] [systemcheck] systemd 'system' units check result: One or more units failed to load.

A possible system issue was detected. There is no need to panic. This is not a serious security problem. However, it may impact other system checks.

Some systemd 'system' units may be stuck in a failed, activating, or deactivating state.

Output of 'leaprun read-systemctl-logs-failed-units-pretty': (equivalent to: sudo systemctl --state=failed,activating,deactivating list-units)

########################################
  UNIT                         LOAD   ACTIVE SUB    DESCRIPTION
* systemd-modules-load.service loaded failed failed Load Kernel Modules

Legend: LOAD   -> Reflects whether the unit definition was properly loaded.
        ACTIVE -> The high-level unit activation state, i.e. generalization of SUB.
        SUB    -> The low-level unit activation state, values depend on unit type.

1 loaded units listed.
########################################

To check manually:
1. Open a terminal. (Start Menu -> System -> Terminal)
2. Run:
leaprun read-systemctl-logs-failed-units-pretty
[WARNING] [systemcheck] tirdad - TCP ISN CPU Information Leak Protection: Disabled

- Reason: kernel module 'tirdad' is NOT loaded.

Here are the relevant messages from journalctl -b

~$ sudo journalctl -b | grep Failed | grep systemd-modules-load
host systemd-modules-load[223]: Failed to insert module 'tirdad': Operation not permitted
host systemd[1]: systemd-modules-load.service: Failed with result 'exit-code'.
host systemd[1]: Failed to start systemd-modules-load.service - Load Kernel Modules.
host systemd-modules-load[486]: Failed to insert module 'tirdad': Operation not permitted
host systemd[1]: systemd-modules-load.service: Failed with result 'exit-code'.
host systemd[1]: Failed to start systemd-modules-load.service - Load Kernel Modules.

Here is uname information.

~$ uname --all
Linux host 6.12.94+deb13-amd64 #1 SMP PREEMPT_DYNAMIC Debian 6.12.94-1 (2026-06-20) x86_64 GNU/Linux
1 Like

I got this exact problem after updating my gateway, only difference is that I use KVM and do not ever remember enabling or seeing secure boot enabled in system check. I am not willing to upgrade anything else until I can confirm the bug is fixed or can be reverted.

1 Like

I have secure boot enabled on my host operating system. I was not aware that I am supposed to enable it in the guest operating systems (whonix gateway and whonix workstation).
Since it is not enabled, secure boot policies should not be the problem.
http://www.w5j6stm77zs6652pgsij4awcjeel3eco7kvipheu6mtr623eyyehj4yd.onion/wiki/Secure_Boot#systemd-modules-load_-_Failed_to_insert_module_module_name_-_Key_was_rejected_by_service
The warning here is different than the warning that I get. I do not get a warning saying that “Key was rejected by service”.

host systemd-modules-load[223]: Failed to insert module 'tirdad': Operation not permitted
~$ sudo mokutil --sb-state
EFI variables are not supported on this system

Should I enable secure boot in virtualbox guests? Is this something that I am supposed to do? I do not remember that being in the instructions for installing whonix.

1 Like

Hi everyone!

I have some problem in whonix on qubes os, with tirdad module and in vm kernel (6.12.94), in 6.12.90 tirdad works fine

My dmesg, after modprobe tirdad command

[  -] [-] TIRDAD: Installing ISN hooks...
[  -] livepatch: symbol 'secure_tcp_seq' not found in symbol table
[  -] [!] TIRDAD: Installation failed
2 Likes

Yes i forget write about this

commit 5da5662181ef8a251e3ba564903002c2e87de452
Author: Eric Dumazet <edumazet@google.com>
Date:   Tue Jun 16 14:36:29 2026 +0200

    tcp: secure_seq: add back ports to TS offset

    [ Upstream commit 165573e41f2f66ef98940cf65f838b2cb575d9d1 ]

    This reverts 28ee1b746f49 ("secure_seq: downgrade to per-host timestamp offsets")

    tcp_tw_recycle went away in 2017.

    Zhouyan Deng reported off-path TCP source port leakage via
    SYN cookie side-channel that can be fixed in multiple ways.

    One of them is to bring back TCP ports in TS offset randomization.

    As a bonus, we perform a single siphash() computation
    to provide both an ISN and a TS offset.

    Fixes: 28ee1b746f49 ("secure_seq: downgrade to per-host timestamp offsets")
    Reported-by: Zhouyan Deng <dengzhouyan_nwpu@163.com>
    Signed-off-by: Eric Dumazet <edumazet@google.com>
    Reviewed-by: Kuniyuki Iwashima <kuniyu@google.com>
    Acked-by: Florian Westphal <fw@strlen.de>
    Link: https://patch.msgid.link/20260302205527.1982836-1-edumazet@google.com
    Signed-off-by: Jakub Kicinski <kuba@kernel.org>
    (cherry picked from commit 165573e41f2f66ef98940cf65f838b2cb575d9d1)
    [kept the DCCP functions in the header, as DCCP was not retired yet
     in 6.12]
    Signed-off-by: Heiko Stuebner <heiko.stuebner@cherry.de>
    Signed-off-by: Greg Kroah-Hartman <gregkh@linuxfoundation.org>
2 Likes

I’ve tried without success, how did you do?

sudo apt install --reinstall linux-image-6.12.90+deb13-amd64 linux-headers-6.12.90+deb13-amd64
sudo dkms autoinstall
sudo update-grub
1 Like

This is very, very good info to have! That looks like Debian’s kernel has changed in a way incompatible with the existing Tirdad code, and we’ll have to update it.

2 Likes

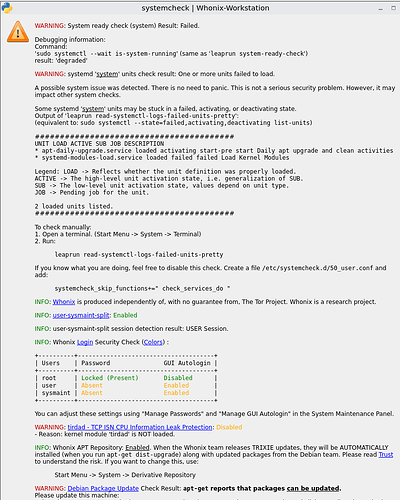

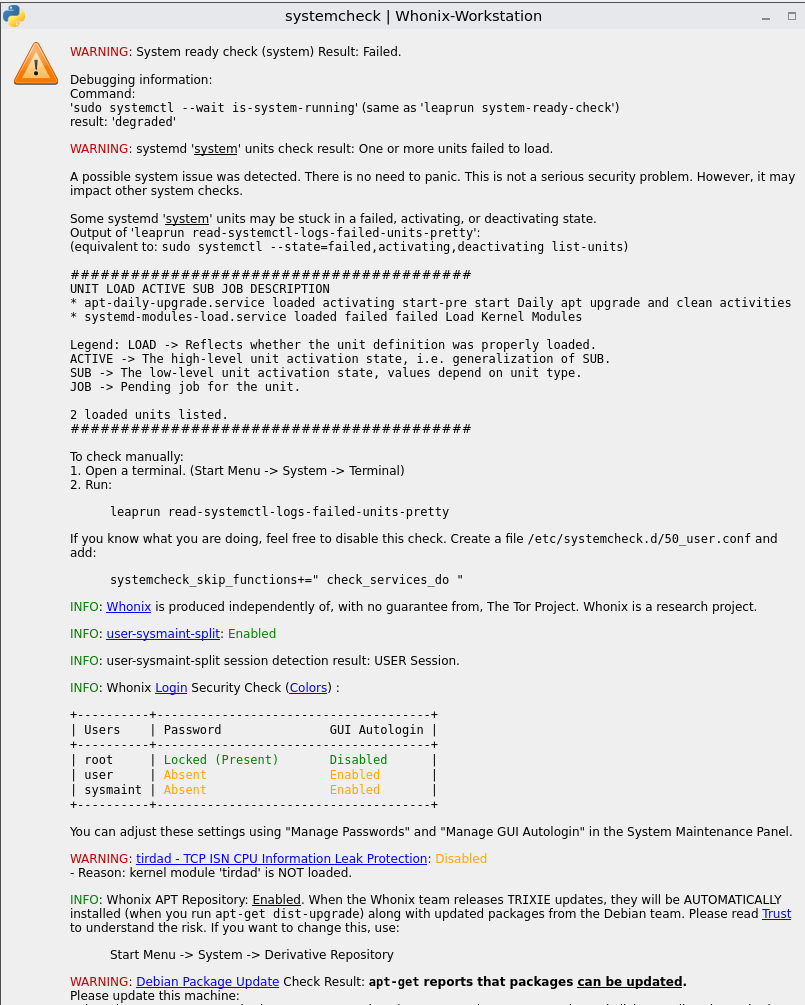

I have written what is coming up on systemcheck after I did sudo apt update and sudo apt upgrade yesterday. Is anybody encountering these same issues? How can they be fixed? It’s happening on both of my virtual machines. I am using whonix on qemu/kvm on debian 12. I cannot remember exactly what was updated but I have no idea how to fix these issues that come up when I start my virtual machines.

WARNING: System ready check (system) Result: Failed.

Debugging information:
Command:
‘sudo systemctl --wait is-system-running’ (same as ‘leaprun system-ready-check’)
result: ‘degraded’
WARNING: systemd ‘system’ units check result: One or more units failed to load.

A possible system issue was detected. There is no need to panic. This is not a serious security problem. However, it may impact other system checks.

Some systemd ‘system’ units may be stuck in a failed, activating, or deactivating state.
Output of ‘leaprun read-systemctl-logs-failed-units-pretty’:
(equivalent to: sudo systemctl --state=failed,activating,deactivating list-units)

########################################
UNIT LOAD ACTIVE SUB DESCRIPTION

  • systemd-modules-load.service loaded failed failed Load Kernel Modules

Legend: LOAD → Reflects whether the unit definition was properly loaded.
ACTIVE → The high-level unit activation state, i.e. generalization of SUB.
SUB → The low-level unit activation state, values depend on unit type.

1 loaded units listed.
########################################

To check manually:

  1. Open a terminal. (Start Menu → System → Terminal)
  2. Run:
    leaprun read-systemctl-logs-failed-units-pretty
    If you know what you are doing, feel free to disable this check. Create a file /etc/systemcheck.d/50_user.conf and add:
    systemcheck_skip_functions+=" check_services_do "
    INFO: Whonix is produced independently of, with no guarantee from, The Tor Project. Whonix is a research project.
    INFO: user-sysmaint-split: Absent
    INFO: user-sysmaint-split session detection result: USER Session.
    INFO: Whonix Login Security Check (Colors) :
    ±------±-------------------------------------+
    | Users | Password GUI Autologin |
    ±------±-------------------------------------+
    | root | Locked (Present) Disabled |
    | user | Absent Enabled |
    ±------±-------------------------------------+
    You can adjust these settings using “Manage Passwords” and “Manage GUI Autologin” in the System Maintenance Panel.
    WARNING: tirdad - TCP ISN CPU Information Leak Protection: Disabled
  • Reason: kernel module ‘tirdad’ is NOT loaded.
    INFO: Whonix APT Repository: Enabled. When the Whonix team releases TRIXIE updates, they will be AUTOMATICALLY installed (when you run apt-get dist-upgrade) along with updated packages from the Debian team. Please read Trust to understand the risk. If you want to change this, use:
    Start Menu → System → Derivative Repository
    INFO: Debian Package Update Check Result: No updates found via apt-get.
3 Likes

hey i have the same exact issues. see also Whonix VMs (Gateway + Workstation) hang at black screen during boot under VirtualBox 7.2.10 on Windows 11 with active VBS/HVCI (NEM mode)

1 Like

After 6.12.94 kernel update tirdad module is broken, you can downgrade you`re kernel to 6.12.90

See this thread (add this after whonix forum root page) t/bug-report-module-tirdad-fails-to-load/23302

1 Like

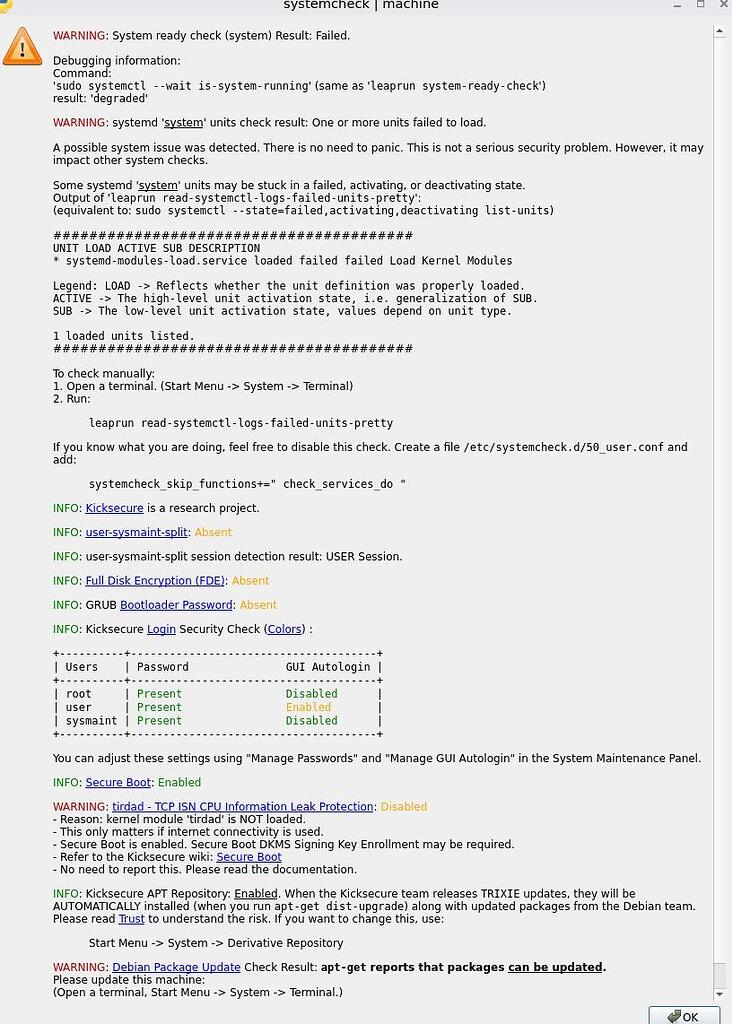

Hey when I tried to run Systemcheck today In my Gateaway I got tirdad and Kloak disabled and a bunch of common other errors. I haven`t done anything or changed something what so ever

I have completely deleted the Whonix images and tried installing fresh new ones

But when I boot the Gateaway I get “Failed to start systemd modules load service”

1 Like

WARNING: System ready check (system) Result: Failed.

Debugging information:
Command:
‘sudo systemctl --wait is-system-running’ (same as ‘leaprun system-ready-check’)
result: ‘degraded’
WARNING: systemd ‘system’ units check result: One or more units failed to load.

A possible system issue was detected. There is no need to panic. This is not a serious security problem. However, it may impact other system checks.

Some systemd ‘system’ units may be stuck in a failed, activating, or deactivating state.
Output of ‘leaprun read-systemctl-logs-failed-units-pretty’:
(equivalent to: sudo systemctl --state=failed,activating,deactivating list-units)

########################################
UNIT LOAD ACTIVE SUB DESCRIPTION

  • systemd-modules-load.service loaded failed failed Load Kernel Modules

Legend: LOAD → Reflects whether the unit definition was properly loaded.
ACTIVE → The high-level unit activation state, i.e. generalization of SUB.
SUB → The low-level unit activation state, values depend on unit type.

1 loaded units listed.
########################################

To check manually:

  1. Open a terminal. (Start Menu → System → Terminal)
  2. Run:
    leaprun read-systemctl-logs-failed-units-pretty
    If you know what you are doing, feel free to disable this check. Create a file /etc/systemcheck.d/50_user.conf and add:
    systemcheck_skip_functions+=" check_services_do "

WARNING: tirdad - TCP ISN CPU Information Leak Protection: Disabled

  • Reason: kernel module ‘tirdad’ is NOT loaded.
1 Like

See also:

Does this still apply in the case where users have not enabled secure boot? I don’t think a simple update even with a new linux kernel should be prompting these errors messages, considering many users have done this multiple times with no such errors. The only user confirmed to have Secure Boot enabled with such errors is the post you included on the Kicksecure Forum.

However, this thread and this other one with my input does not admit to having secure boot enabled. I want to be sure we’re approaching this issue the right way and don’t brick our boot process. I can confirm system check does not return anything related to secure boot like the log image in the Kick Secure thread had.

1 Like

Indeed! No I dont have secure boot enabled either! I use KVM also!

Strange…

1 Like

Bug reported to Tirdad upstream:

Fix created, I tested this locally and it works:

2 Likes

Tell me in detail what needs to be done to solve the problem? I am a novice Linux user.

1 Like

Nothing, wait until the minimal patch is merged into Kicksecure and Whonix.

1 Like

I run Whonix in VirtualBox 7.2.6. I only updated Flatpak in the terminal and then ran the system check. Since then, error messages appear. I don’t know Whonix that well. What solutions are there? Are the mistakes uncritical or should I do something?

1 Like

I’m having the same issue. Supposedly it’s a kernel issue? It happens after systemcheck tells me to update and I update the system.

1 Like
